Topic starter
For the CDI bike I have wired up a MSD 8918 Tach Signal Pickup and a Smart Fun Optocoupler which works grate.
I also have a bike with a Morris G5 magneto I would like a clean RPM from. I see "Auto Meter 9118 Tachometer Magneto Signal Converter" which I assume is a 12V out and I could run that into the Smart Fun Optocoupler.
Wondering if you could suggest a circuit DIY to pump the Magneto kill stud signal though that I could connect to the Smart Fun Optocoupler.
Posted : 14/04/2026 12:18 pm
Topic starter

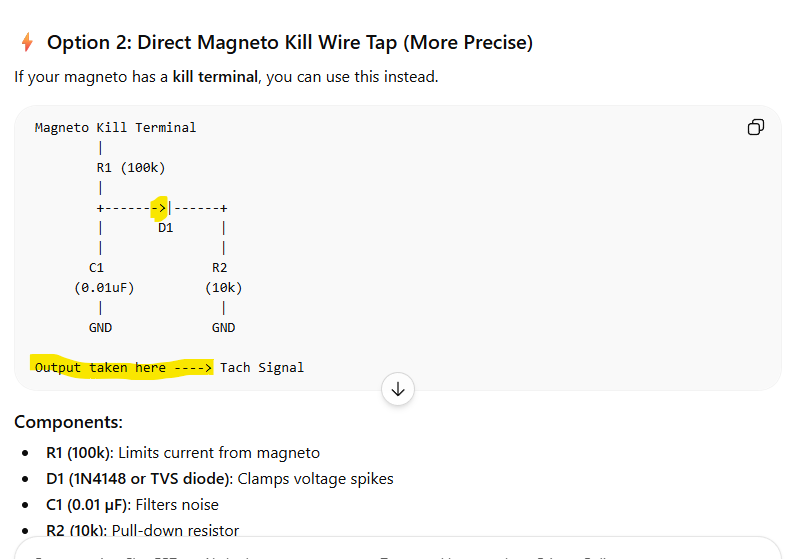

ChatGPT came up with this and I likely have the parts. my assumption would be take the tach signal and a common ground and run that into the optocoupler with the optocoupler feeding back from the 5 volt source?
Posted : 14/04/2026 1:05 pm
