YourDyno Standard v5 instrument kit to control Inertia or Braked dynos. Optional built in CAN bus. It includes the following:
2 Load cell inputs (braked type)
2 RPM sensor inputs
2 Brake control outputs supporting
Eddy brakes using the YourDyno Eddy brake power supply or existing power supply
Water brakes using Stepper or servo controlled valve. Support includes special water brake regulator mode (Load Control)
Any other manual/electronically controlled brakes (PWM, Analog, Stepper, Servo controlled)
3 analog 0-5V Auxiliary inputs for use with any analog sensor
1 K-type thermocouple input
Including external Environmental sensors (weather station) with 3m cable for use with automatic correction (SAE J1349, DIN70020, etc) for environmental factors (Temperature, humidity and air pressure)
Built in CAN bus support (option) for connection to ECUs or CAN sensors
Support for virtually unlimited additional data channels using CAN bus sensors or plugin sensors
All connectors are included and are with screw type terminals
The unit is powered over USB, no need for a separate power supply
Includes a 3m shielded USB cable
Compatible with YourDyno free software. More details about the kit and the instrument here!
In stock.
Note: All prices are without taxes and VAT, except for orders to Norwegian addresses. Customer is responsible for paying duty/taxes in their respective country upon import.

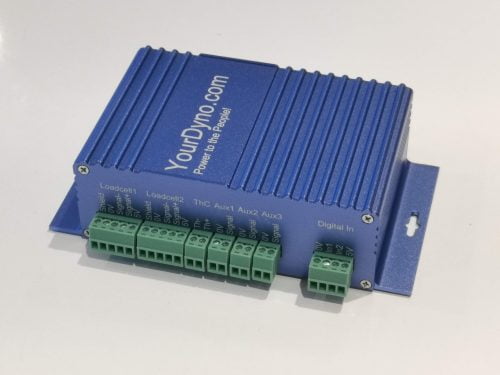

YourDyno Standard v5 Instrument Unit
USD800 – USD1,450
Description
YourDyno Standard v5 instrument kit to control Inertia or Braked dynos. Optional built in CAN bus. It includes the following:
Compatible with YourDyno free software. More details about the kit and the instrument here!
In stock.
Note: All prices are without taxes and VAT, except for orders to Norwegian addresses. Customer is responsible for paying duty/taxes in their respective country upon import.
Additional information
Inertia dyno, Braked dyno
No, Yes
