Mounting the load cell

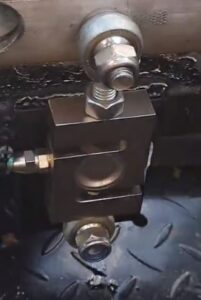

Load cells need to be mounted such that they get no bending moment. The way to do this is to use rod ends bearings, like this.

Rod end bearings are available in all threads and sizes suitable for the load cells.

Last updated byJostein on March 23, 2019
