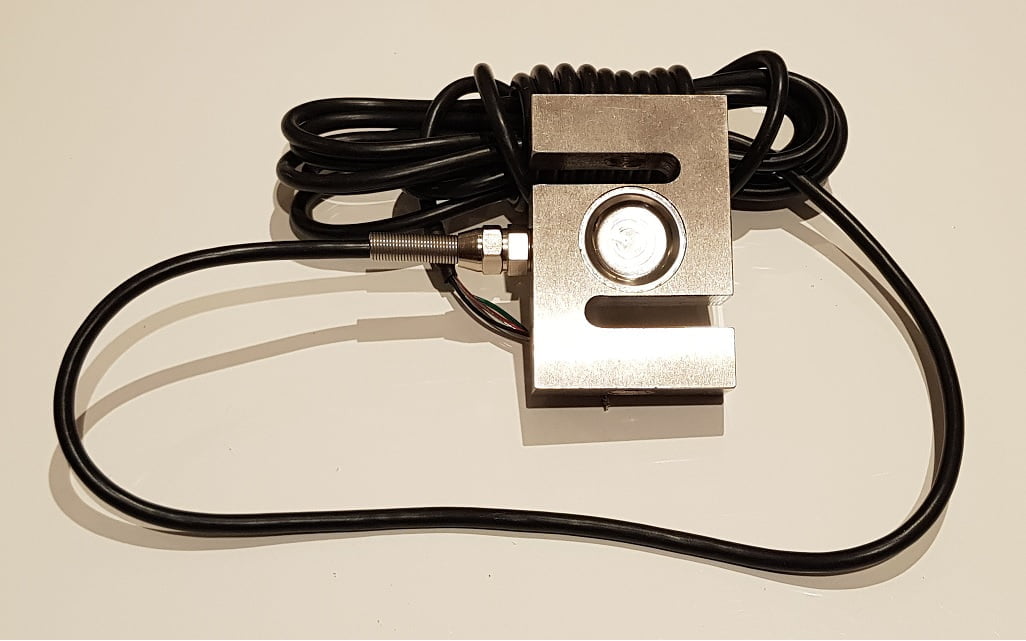

Load cell including shielded 3.5m cable and connector to fit YourDyno. Make sure to add a rod end bearing to each end of the load cell, so it can rotate freely.
Capacity
L
H
B
D
20kg
51
64
12.7
M8x1.25
50-500kg
50.8
76.2
19.05
M12x1.75
750-1000kg
50.2
75.5
25.3
M16x2
Dimensions in mm.
Note: All prices are without taxes and VAT, except for orders to Norwegian addresses where VAT is added automatically. Customer is responsible for paying duty/taxes in their respective country upon import.
Load cell
USD100
Description
Load cell including shielded 3.5m cable and connector to fit YourDyno. Make sure to add a rod end bearing to each end of the load cell, so it can rotate freely.
Dimensions in mm.
Note: All prices are without taxes and VAT, except for orders to Norwegian addresses where VAT is added automatically. Customer is responsible for paying duty/taxes in their respective country upon import.
Additional information
10kg, 20kg, 50kg, 100kg, 200kg, 500kg, 750kg, 1000kg, 1500kg, 2000kg
