Hydraulic brake example

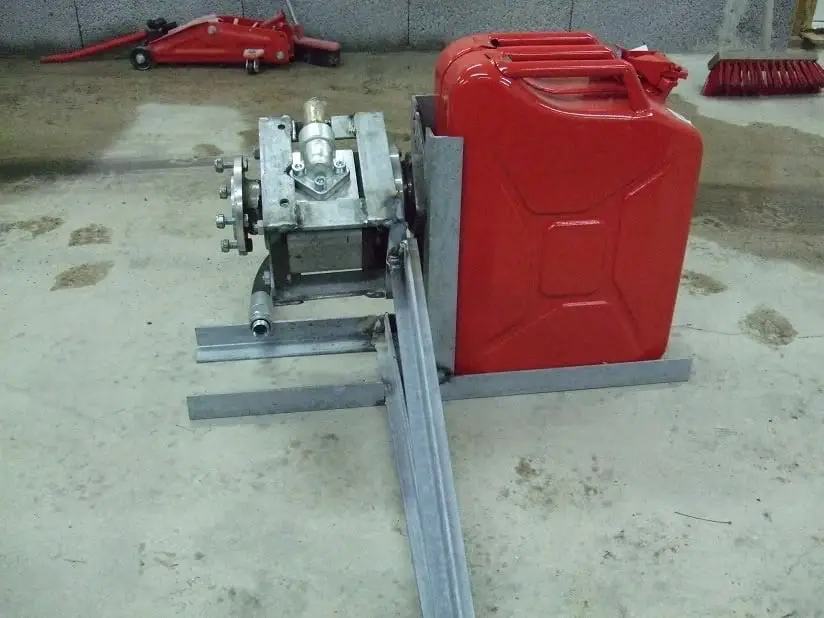

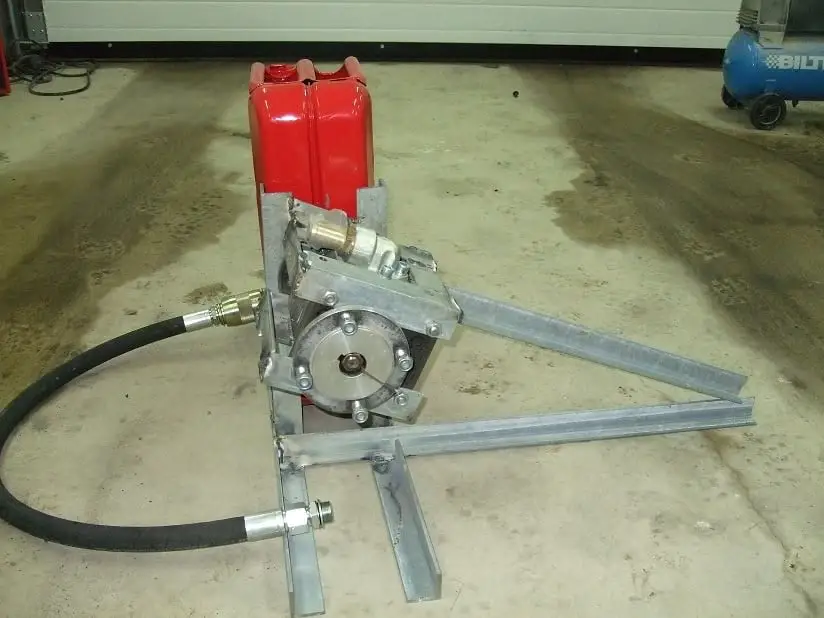

Here are a few more pictures of a hydraulic brake dyno.

DSCF0630

DSCF0634 DSCF0642 DSCF0643 DSCF0644

Quite simple setup!

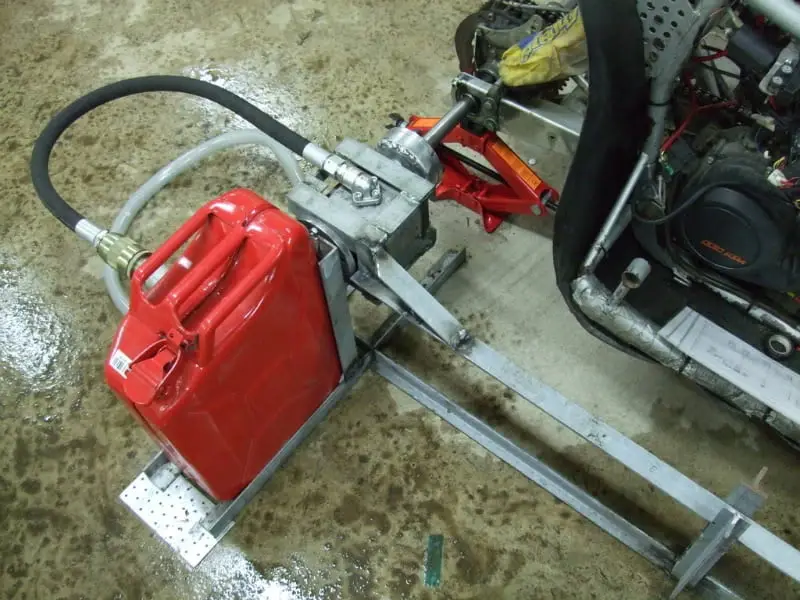

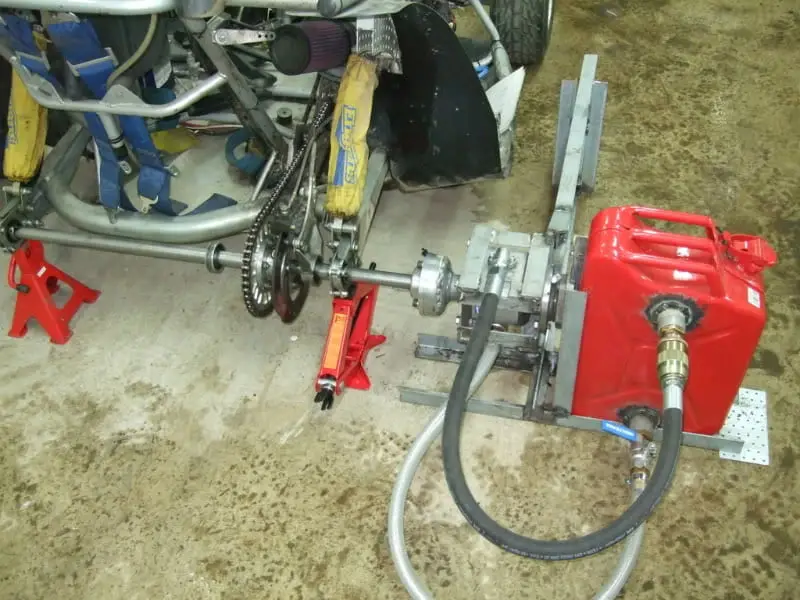

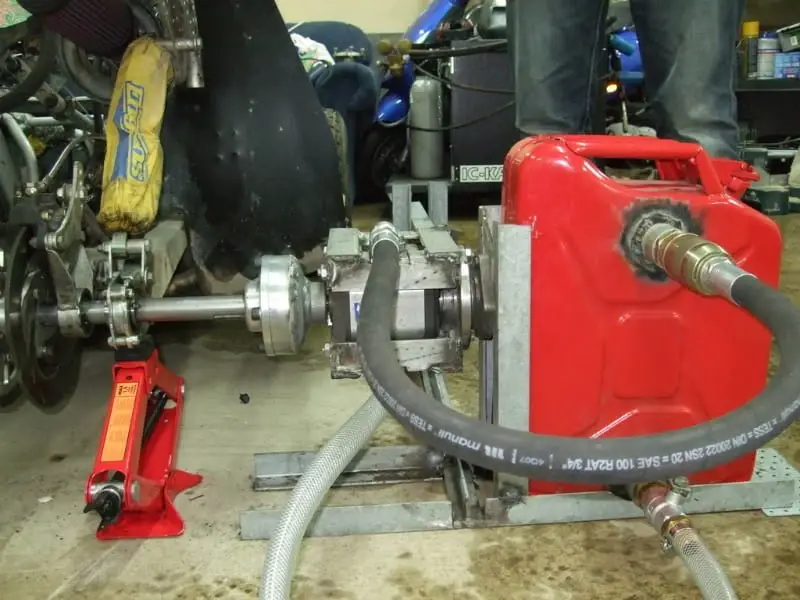

The dyno above was used to brake Crosskarts with about 85hp. No cooling was necessary, but when several runs were done in quick succession the oil got hot so a glove was needed to operate the flow control valve. For higher horsepower applications cooling would be needed.

Learn more about choosing the right pump here.

 Back to Brake dynos
