[Solved] Power sweep not working

9 Posts
2 Users
1 Reactions
41 Views
 Loic
(@loic)
Posts: 10
Member
Topic starter


Hi,

When i try to run a power sweep, the brake goes to 100% when reaching the start rpm.

Then the engine rpm drops and the power run begins. The target rpm goes to 6000 rpm but i can't get higher than 3000 rpm on the engine.

In manual mode when you reach the target rpm the brake keeps on increasing till engine speeds drops.

What could be wrong?


Posted : 31/05/2025 8:07 pm
 Loic
(@loic)
Posts: 10
Member
Topic starter


Power run


Posted : 31/05/2025 8:18 pm
 Loic
(@loic)
Posts: 10
Member
Topic starter


Config file


Posted : 31/05/2025 8:19 pm
(@cmadmin)
Posts: 47
Member Admin


There are a few things that can be wrong. One idea is that you have set both RPM1 and RPM2, but only use RPM1. Engine RPM is then Gear ratio * (RPM1 + RPM2) / 2. If this is the case, then as soon as you reach the start RPM, the brake controller sees that RPM1 is twice the target (since RPM2 is 0) so the brake goes to 100% and you will only reach half the max RPM.

If you use 2 RPM channels, but only have 1 brake RPM, then set RPM2 to Other RPM.

That's my best guess. If this is not the case, then send me the saved config file (backup options to file) and the csv file and I can take a look.



This post was modified 2 days ago by Jostein Fonneland

Posted : 31/05/2025 8:22 pm
(@cmadmin)
Posts: 47
Member Admin


Posted by: @loic

Config file

No file attached




Posted : 31/05/2025 8:28 pm
 Loic
(@loic)
Posts: 10
Member
Topic starter

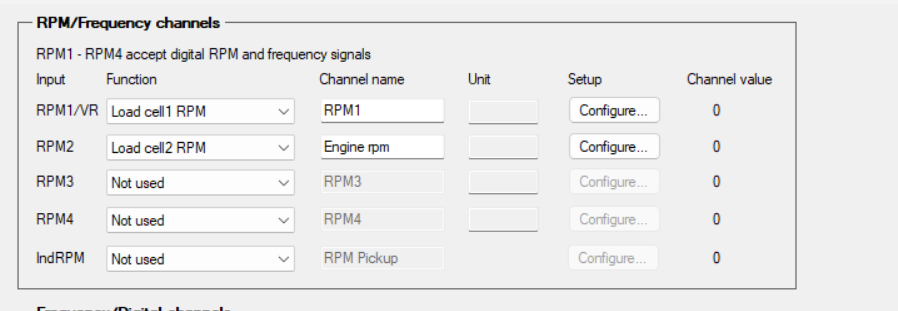

I have it configured like this


Posted : 31/05/2025 8:36 pm
(@cmadmin)
Posts: 47
Member Admin


@loic yes, this does not work. It now thinks you have two load cells (two brakes). Each will have an individual PID controller. Configure RPM2 as Other RPM instead of Load cell 2 RPM.

Make sure you set the gear ratio again after this change.

This post was modified 2 days ago by Jostein Fonneland

Posted : 31/05/2025 9:01 pm
 Loic
(@loic)
Posts: 10
Member
Topic starter


Thank you for the fast reply, i will have a try with the different settings.


Posted : 31/05/2025 9:25 pm
 Loic
(@loic)
Posts: 10
Member
Topic starter


Problem is resolved with the new settings. Thank you for the fast reply!


Posted : 01/06/2025 8:41 pm
